Tongxin Foreign Language School

A New Flowing Campus Growing from The Old Chessboard

General Information

Project Type
Educational
Project location
Shenzhen, Guangdong, China
Completion Year
2019
Gross Built Area
46600㎡
Lead Architect
Yunchao Xu
Design Team
Jianxuan Chen, Kan Gao, Shengjie Zhang, Yuteng Lin, Tianshuai Chen, Yang Shi
Construction Documents/HVAC
SZAD
Collaborator
RB Design, Hill Landscape
Clients
Tongxin Foreign Language School
Photo credits
Schran Images


"Shenzhen is becoming the world's most densely built super city, and the most lack of campuses is the venue for activities. If you can create a vertical playground that allows children to play in ten minutes between classes, it would be great!"

 –Yunchao Xu



Background

This is a low-cost regeneration and expansion project of the old campus. Due to the shortage of land, the school needs to build a new junior high school building on the original campus playground to meet the 1,500-degree gaps. The new school building will inevitably bring huge pressure to the original campus environment. There are not enough outdoor activity spaces for teachers and students in the school, and the average outdoor activity space per student is less than 5 square meters.



Strategy to the city

Facing the city, the two borders of the campus adopt different avoidance strategies: forward platforms to give way to the sunlight impact of the high-rise residential buildings on the south side, and reverse platforms to avoid the noise impact of the main road on the west side of the campus.

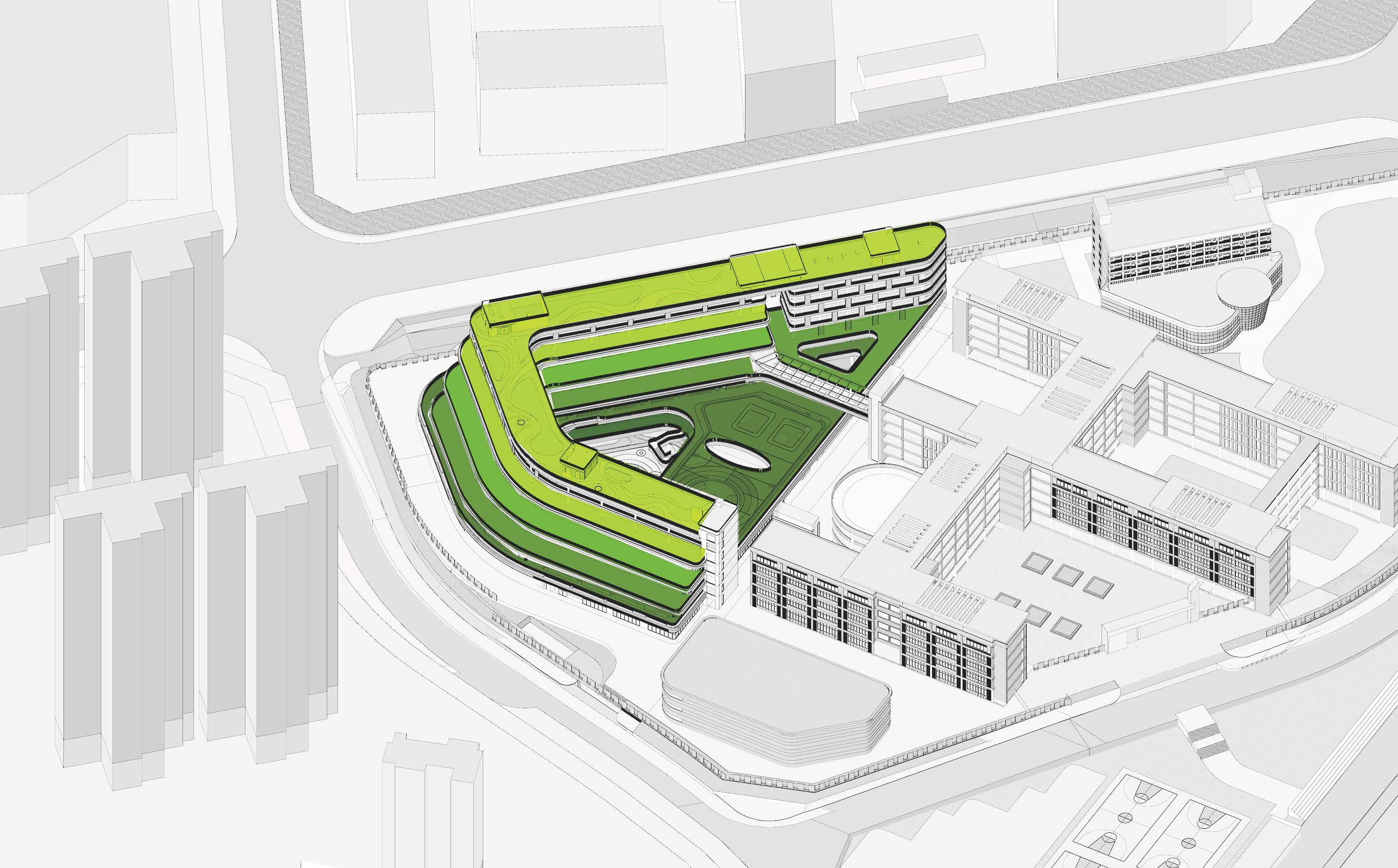

Embracing the old campus

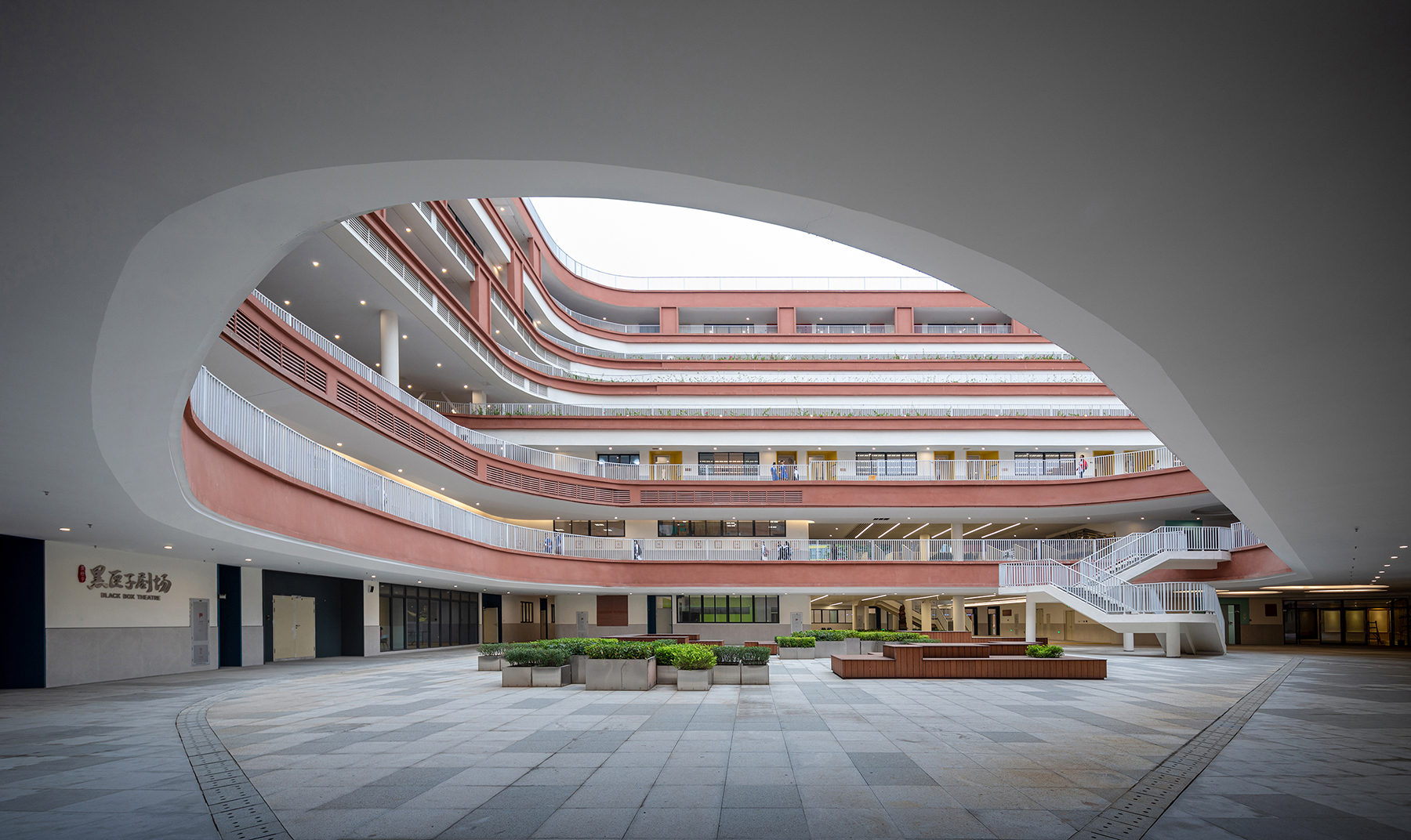

Facing the old campus, the new campus did not continue the traditional fishbone layout of teaching blocks; instead, it used empty space and adopted a large enclosure layout to form an embrace between the old and the new, thus creating an open, three-dimensional, and flowing campus space.



Flowing platforms

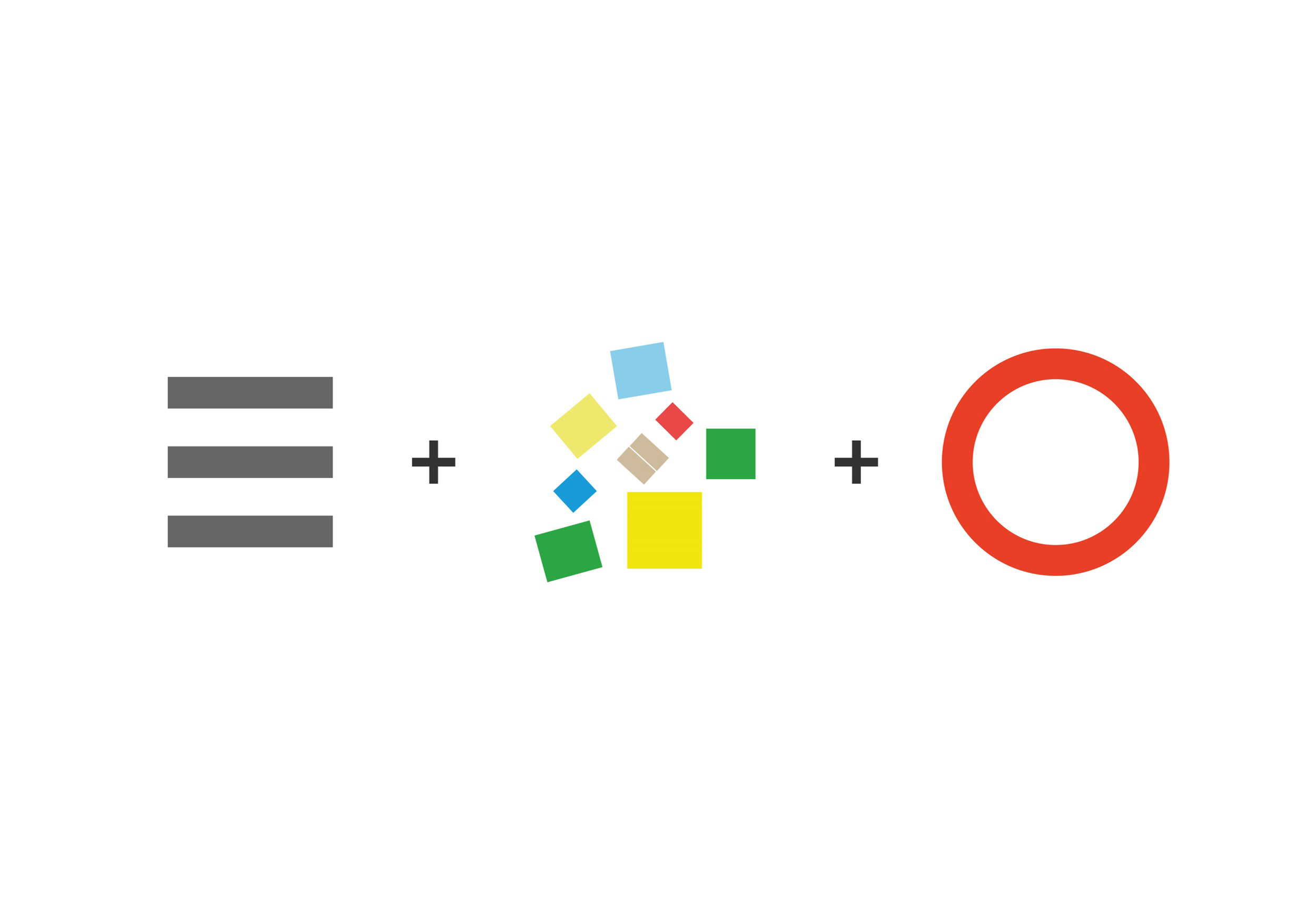

The setting of the large flat layer maximizes the requirements of the school’s future flexibility. It can be set according to one grade for each level, or it can be set flexibly according to the class switch system. The classroom units are like pebbles, placed on a large and flowing platform.

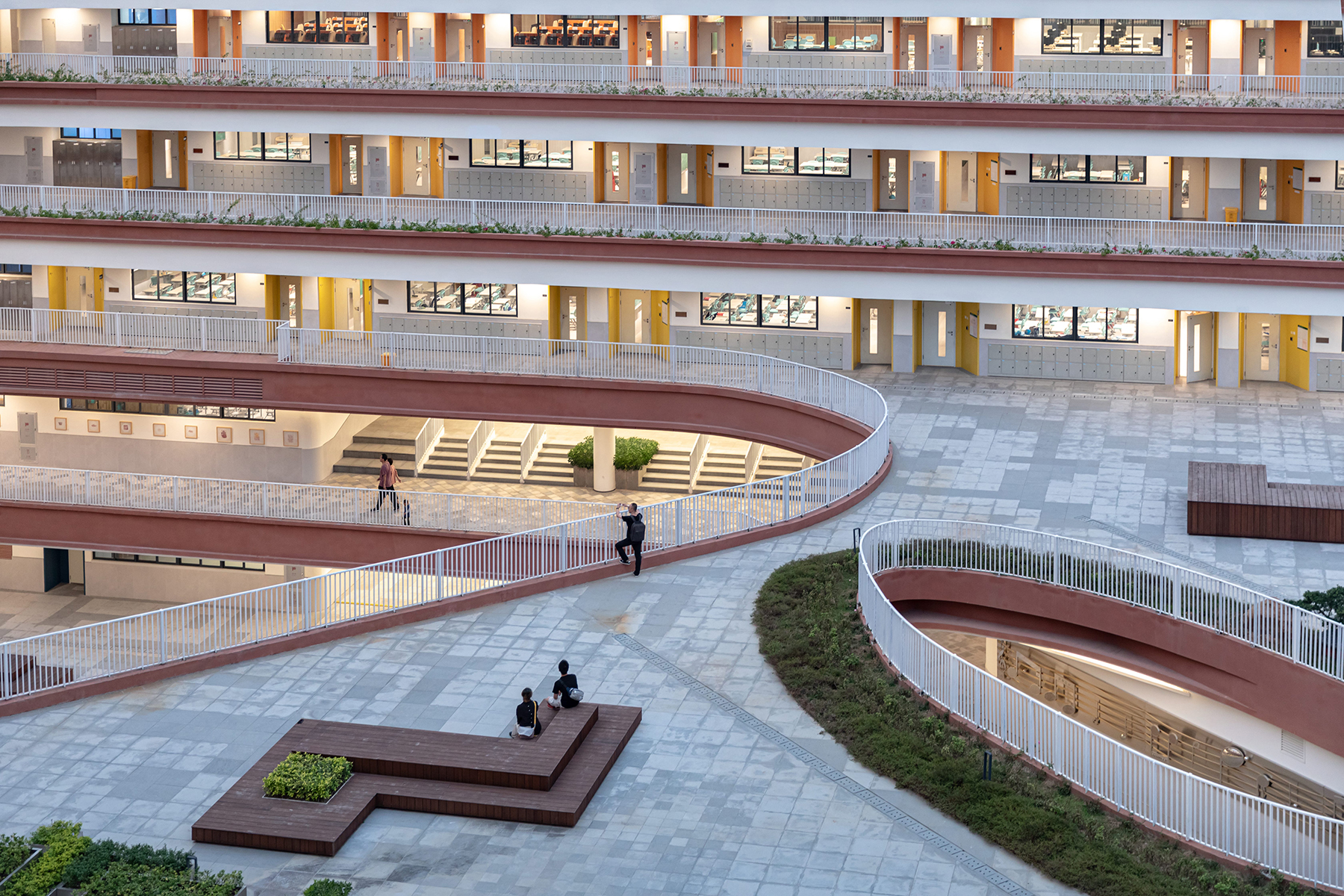

Three-dimensional playgrounds

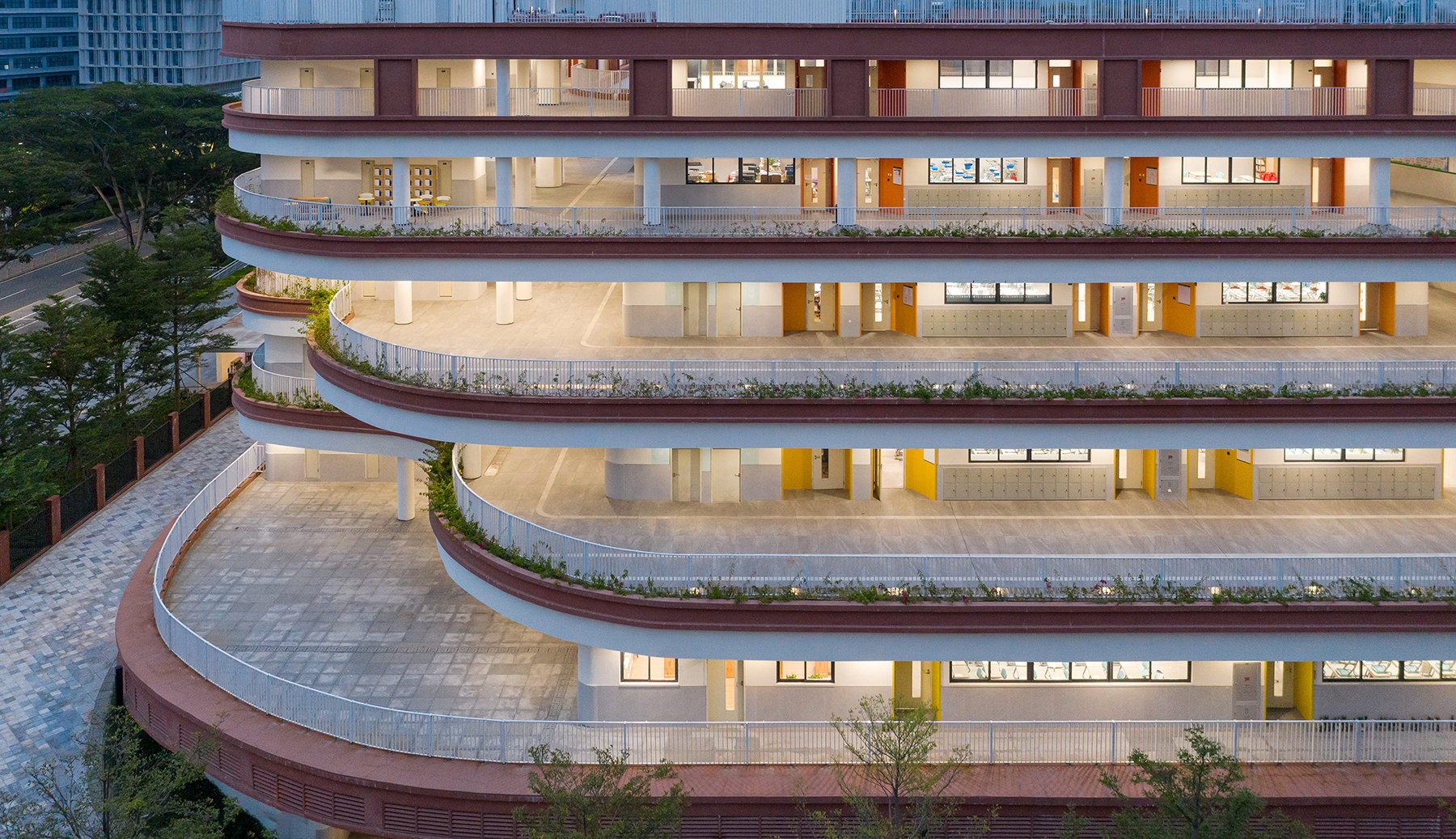

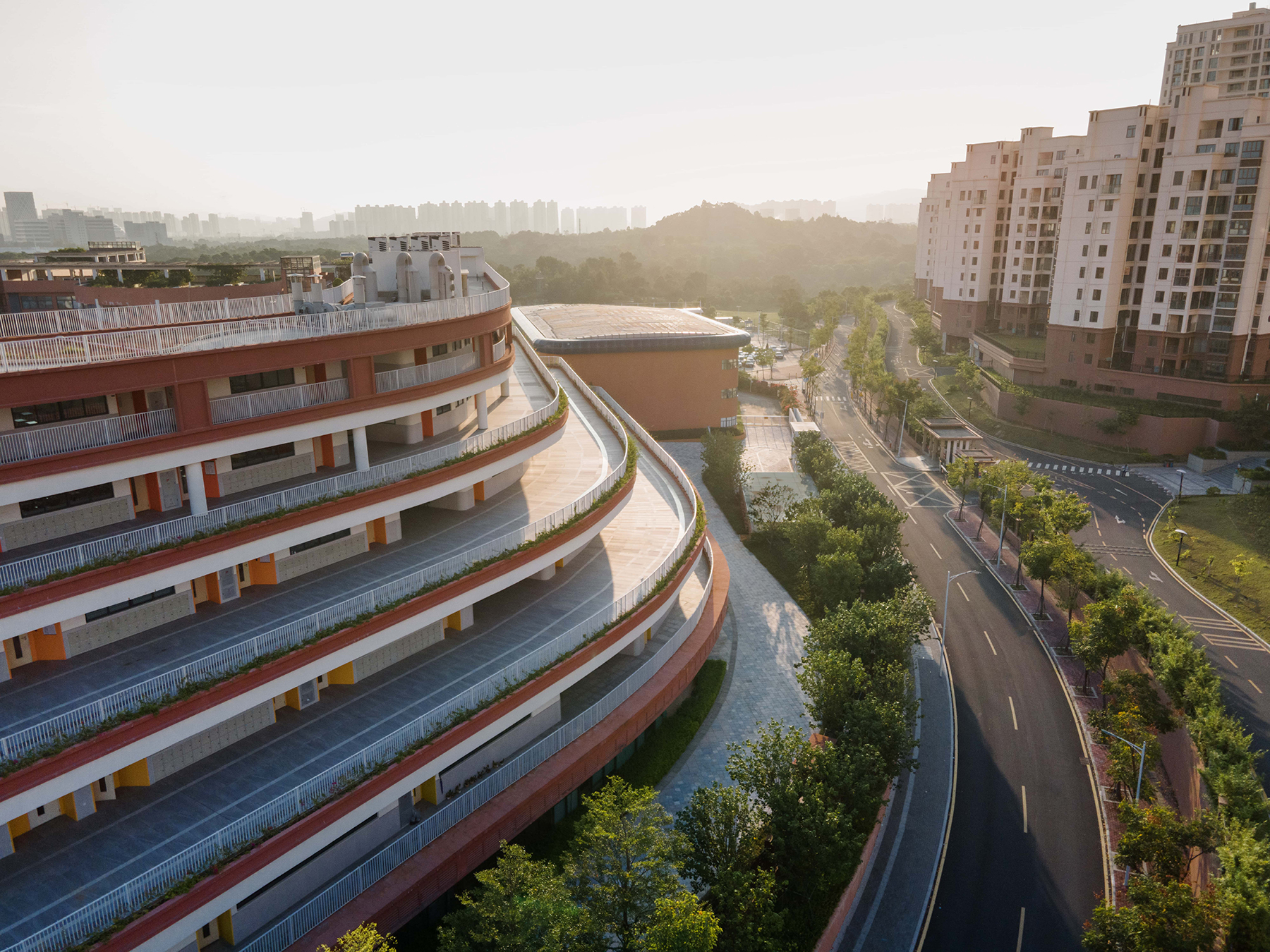

The continuous wide outdoor platform encourages children to get out of the classroom more during the break, free to run, play, communicate, and even do exercises. The total area of the three-story sky platform with a depth of 9m is equivalent to that of two 300-meter playgrounds, adding valuable outdoor activity space to the crowded campus.

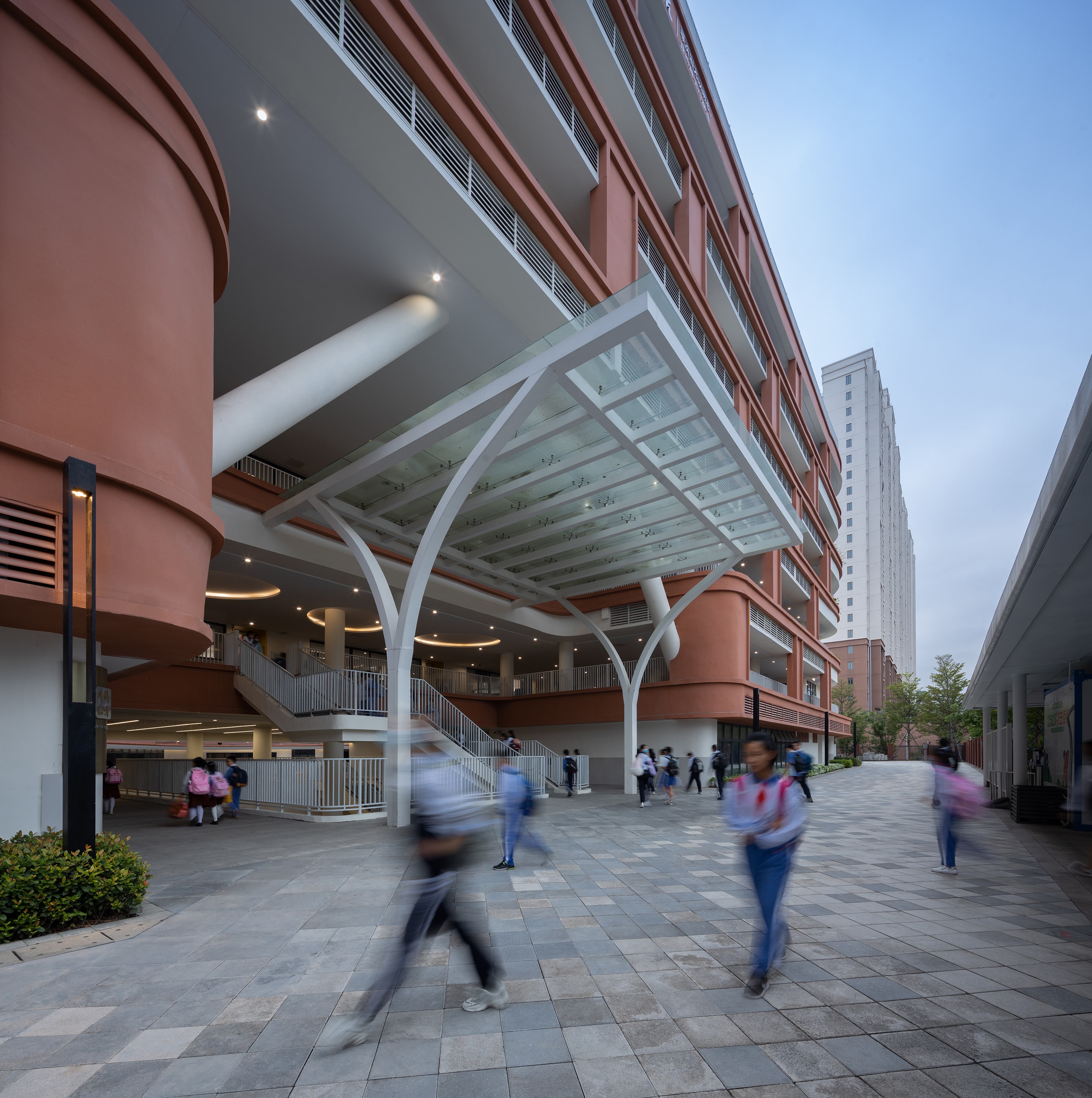

Canopy for sunshade and rain

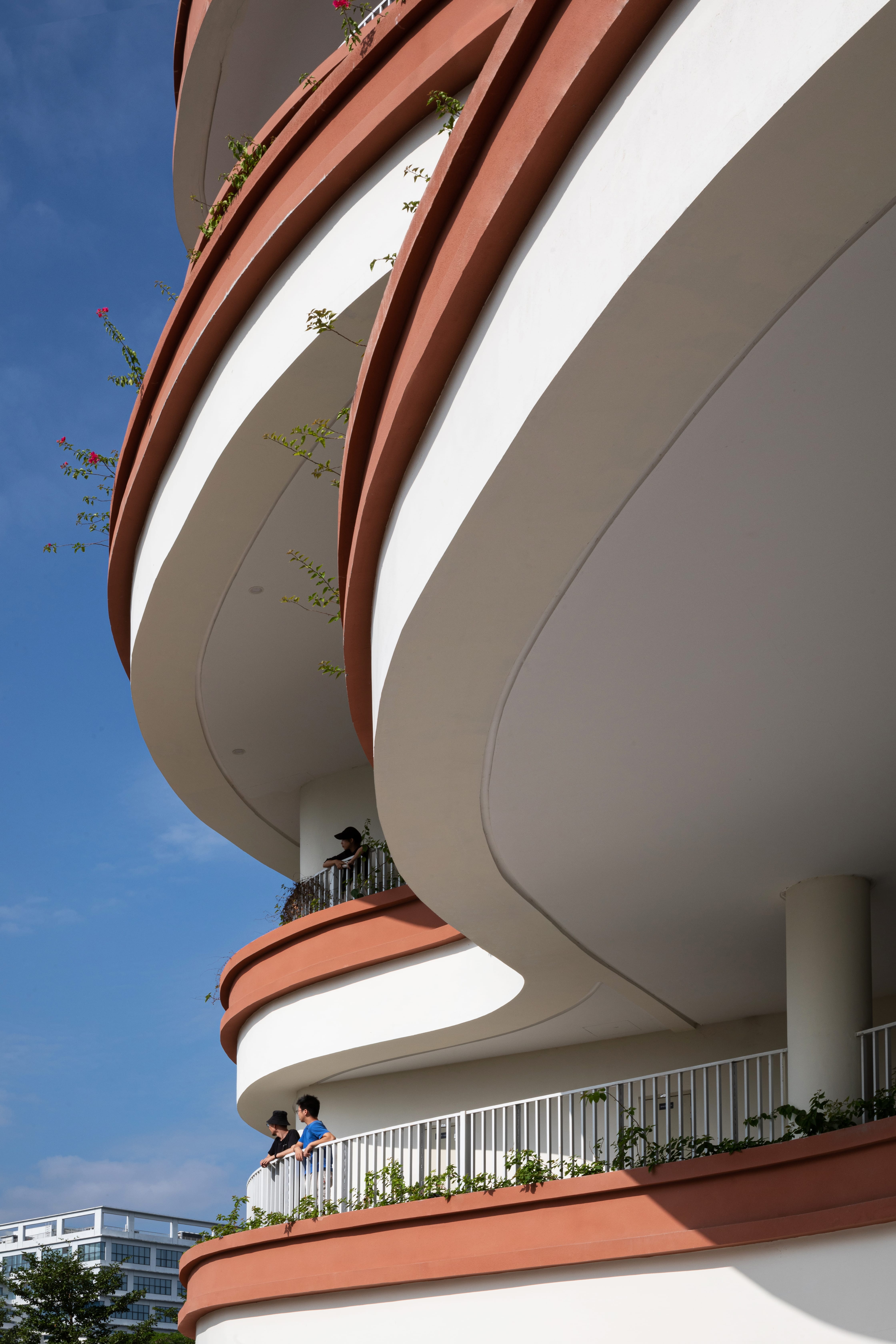

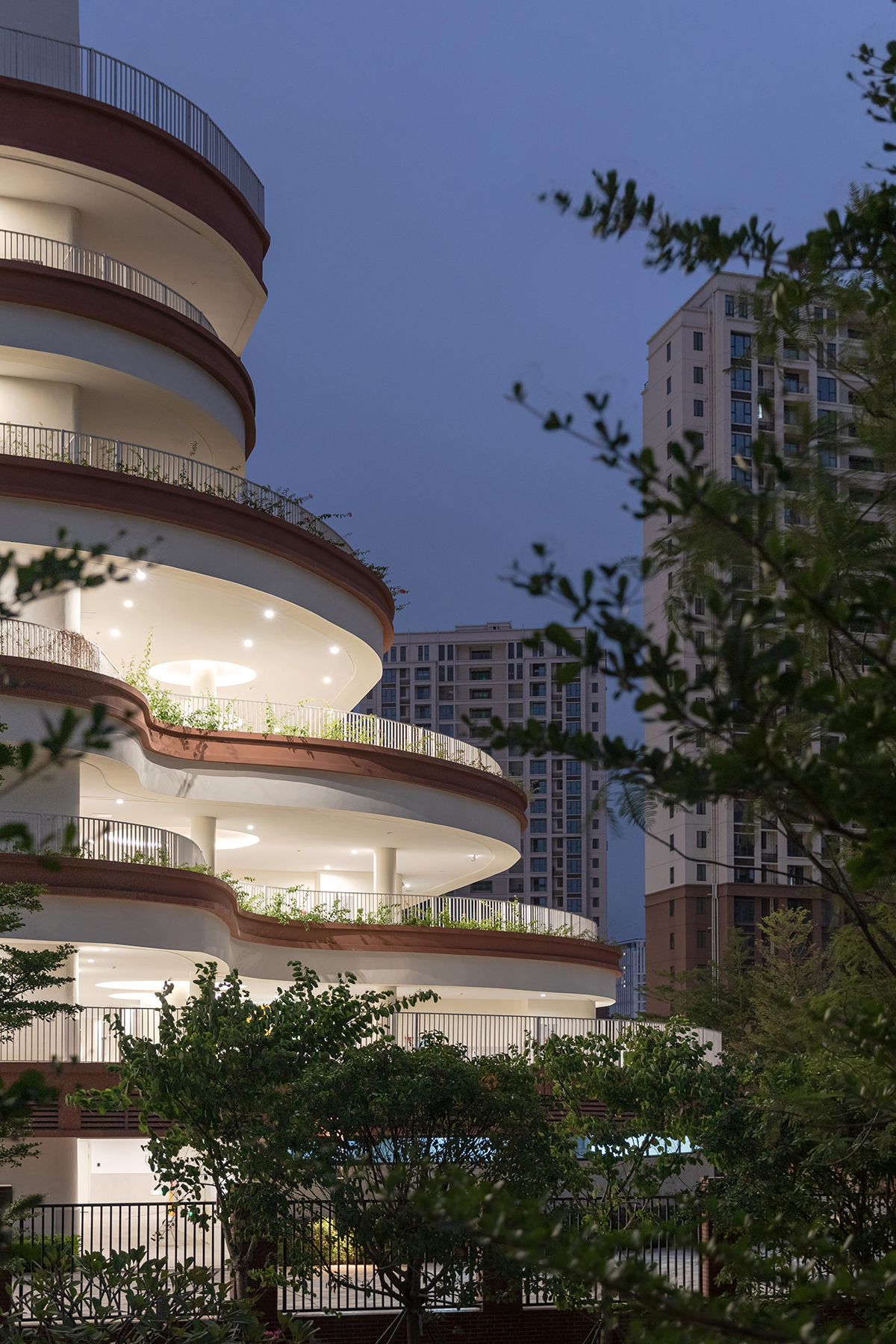

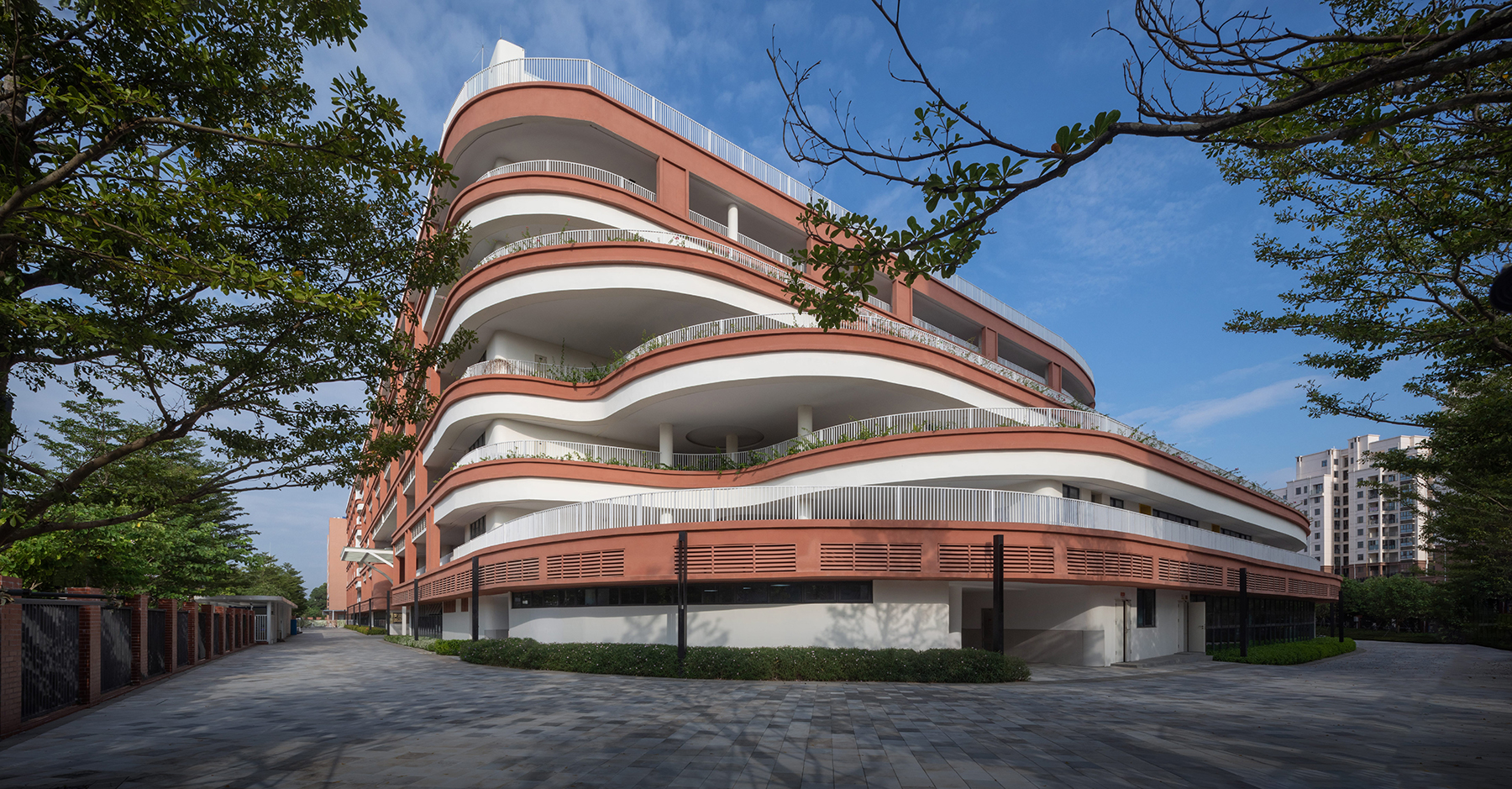

Each grade has its own playground between classes. The horizontal and continuous green plants on the platform are connected to the city and also increase the green vision of the campus. Each platform has a 3-meter cantilever, which provides a shading of continuous space for students in Shenzhen's subtropical climate.



Unnamed spaces

There are many flexible transition spaces between the classroom modules, which have become students’ favorite unnamed spaces, sometimes as small galleries, sometimes as game corners, and sometimes just for kids to avoid the teacher’s vision. It brings unlimited imagination to the children, and also leaves every child with their own memories.

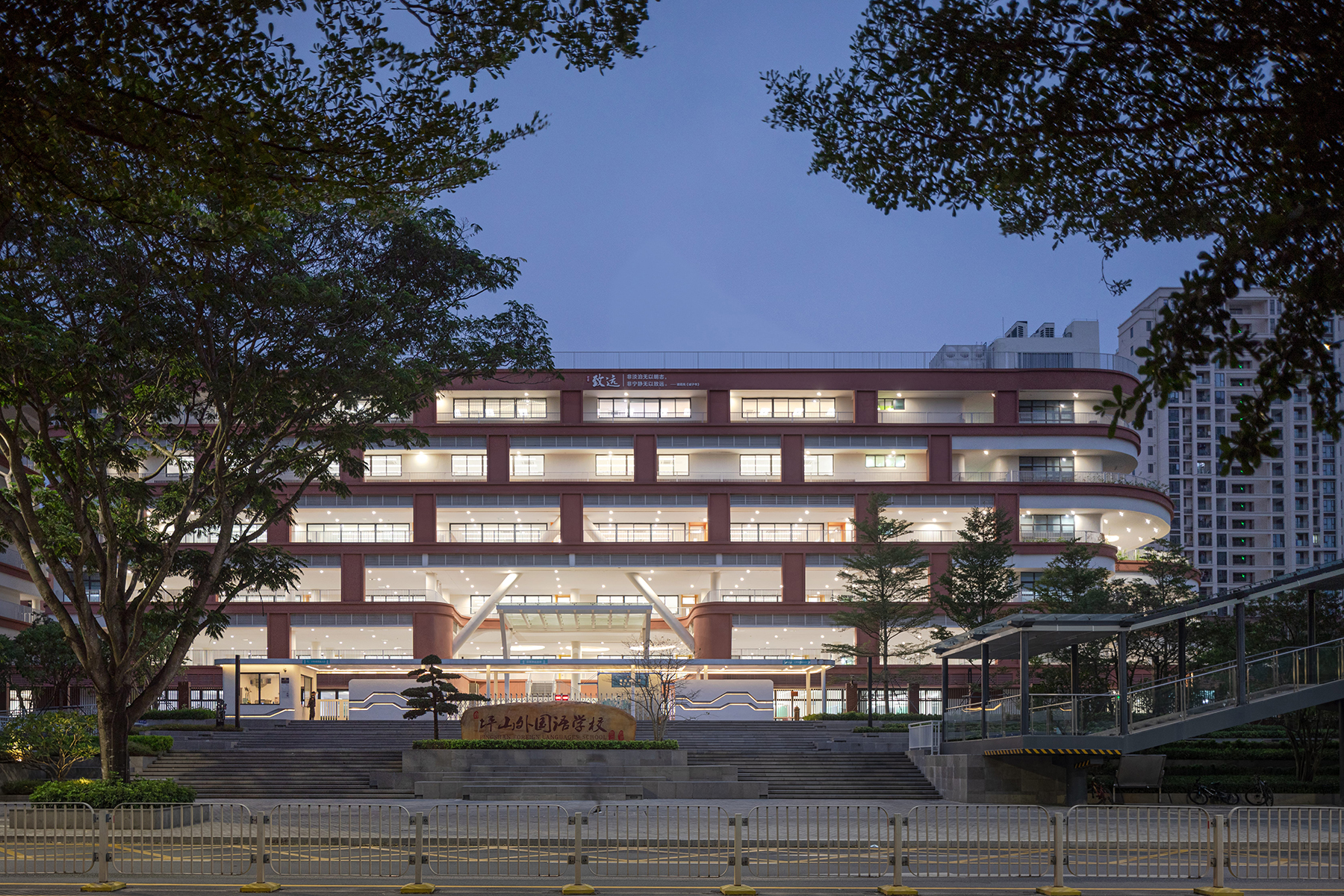

A big yard full of lights

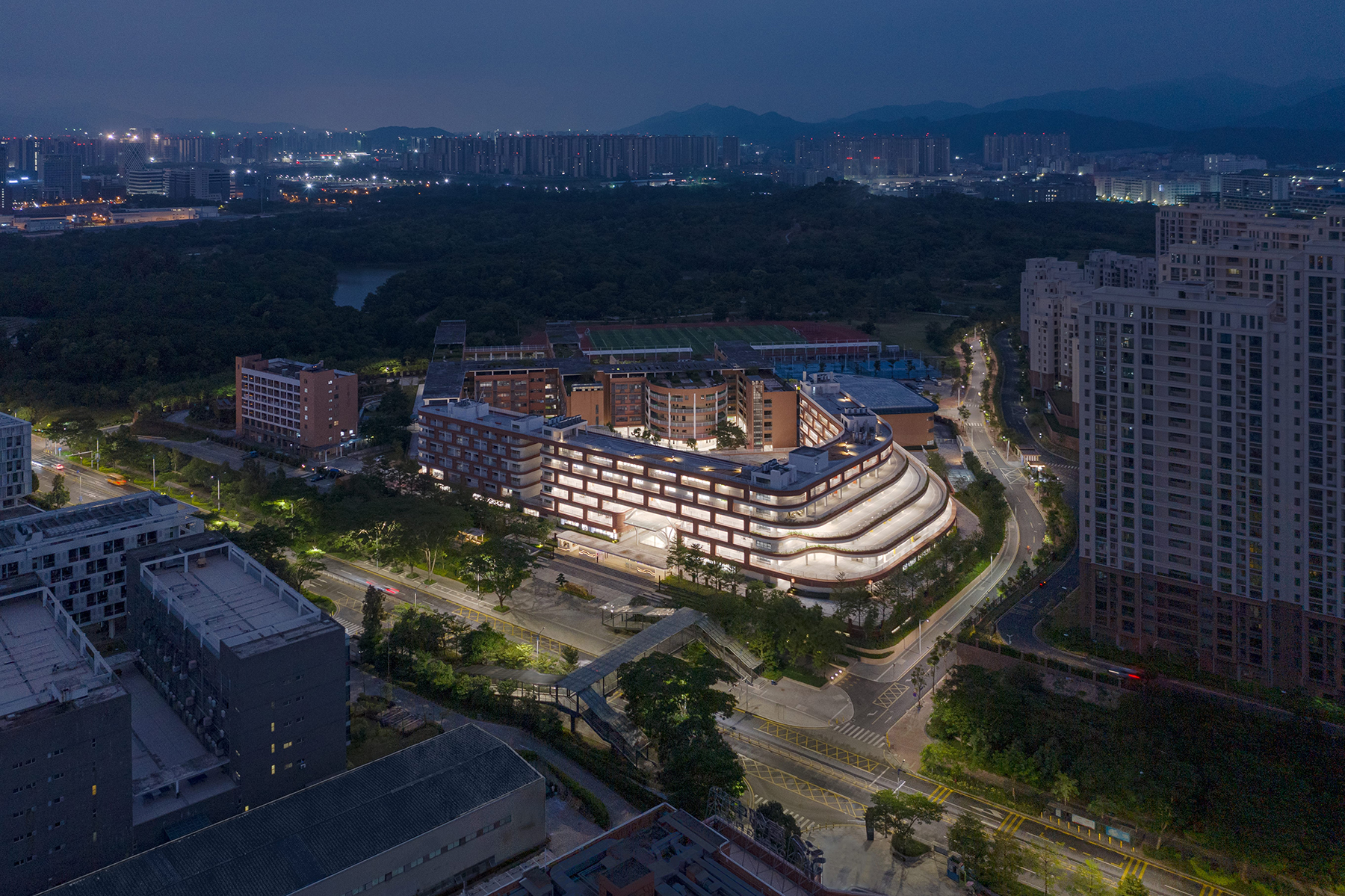

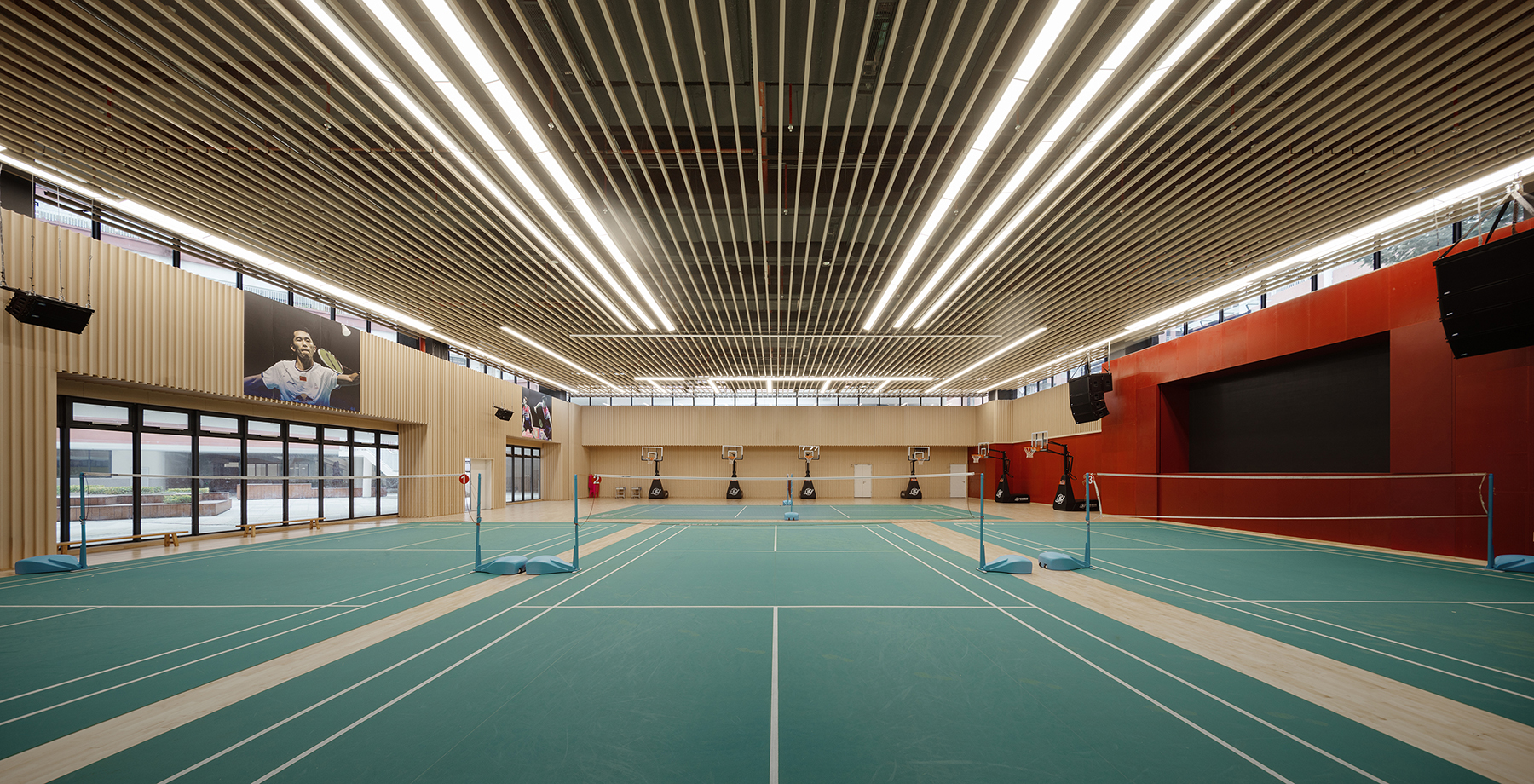

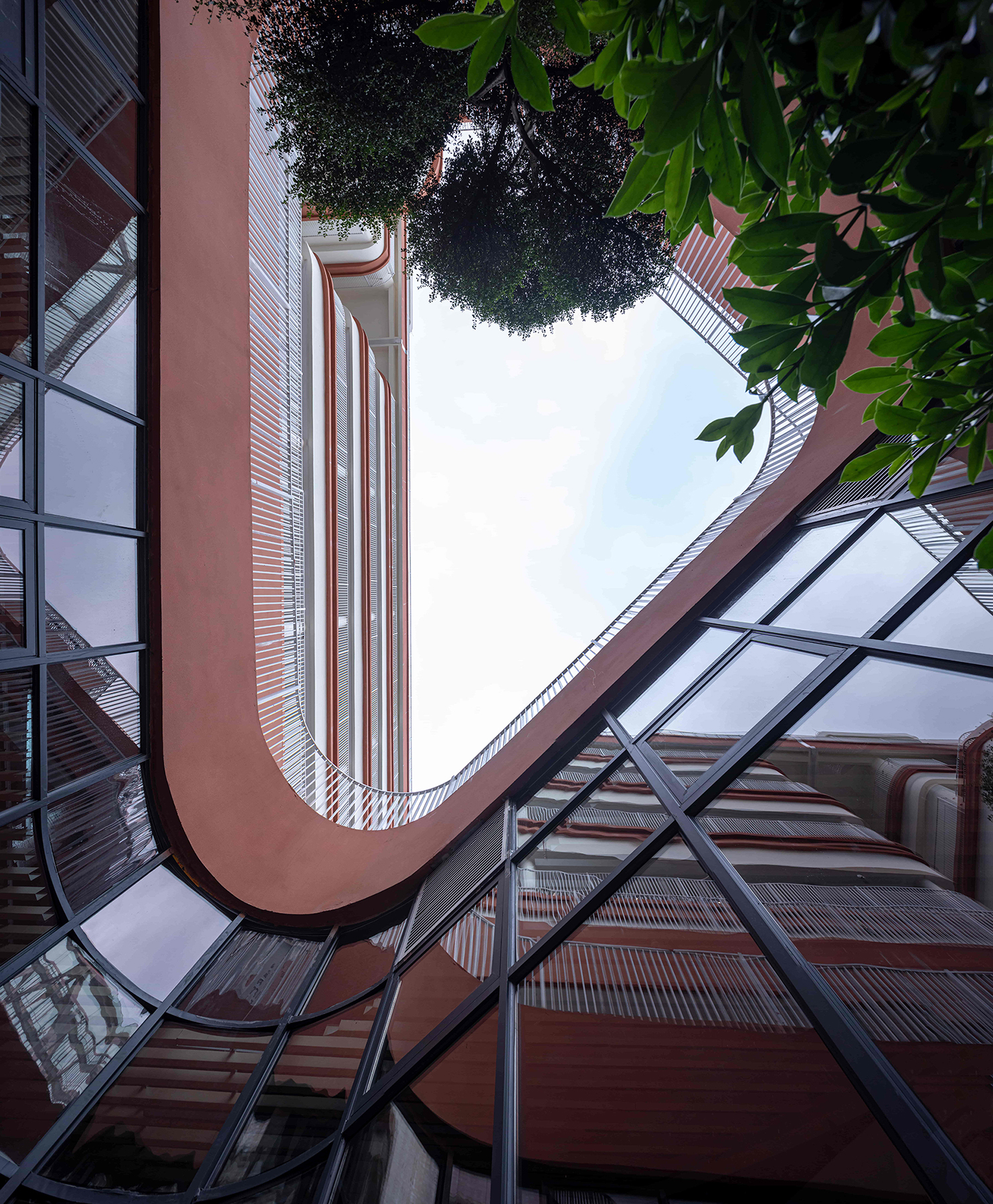

There are three vertical light holes surrounding the large courtyard, deep underground to provide natural sunlight and ventilation for the library, gymnasium and activity room, and at the same time alleviate the impact of large-scale buildings on the campus environment. In the evening, caves become bright and play with light and shadow, making the campus a small and warm town to inspiring more campus public events.



The horizontal and continuous green plants on the platform are connected to the city and also increase the green vision of the campus. Each platform has a 3-meter cantilever, which provides a shading of continuous space for students in Shenzhen's subtropical climate. There are three vertical light holes surrounding the large courtyard, deep underground to provide natural sunlight and ventilation for the library, gymnasium and activity room, and at the same time alleviate the impact of large-scale buildings on the campus environment. The photovoltaic power generation panels arranged on the roof of the building can store energy and provide most of the electricity for the night lighting of the entire campus. This is a very effective low-carbon and energy-saving operation plan.
